Telstra TelePresence B2B Config
Dial Plan
| Dial Pattern | Descriptions | FNN |
|---|---|---|
| 912266591359 | TATA International - Mumbai Static | N2019334R |
| 18774418282 | TATA International - Meet-Me Service | N2019334R |
| 442031061789 | TATA International - Stratford Static | N2019334R |
| 16312095439 | TATA International - New York Static | N2019334R |
| 18774418282∗∗XXXXXX | TATA Exchange | N2019334R |
| 26269508[5-9] | NBN CO LIMITED | N2015708R |
| 38662829X | NBN CO LIMITED | N2015708R |
| 29927428X | NBN CO LIMITED | N2015708R |
e164 - Translation Pattern
| Pattern | Descriptions |
|---|---|
| 0.[2378]! | Dropping leading 0 for 02,03,07,08 |
| 0011.18666287435∗∗XXXXXXXX | Dropping 0011 prefix for Cisco 3.0 Meet-Me Service |
| 0011.18669863384∗∗XXXXXXXX | Dropping 0011 prefix for AT-T 3.0 Meet-Me Service |
| 0011.[1-9]! | Dropping 0011 prefix for all other international number |
| 1800011080∗∗.[56]XXXXXXX | Dropping 1800…∗∗ prefix for Hosted Multipoint Bridge Service |
| 61.[2378]! | Dropping Oz 61 prefix |
Config Detail
Customer Detail
| Name: | Woolworth |
|---|---|
| VPN FNN: | N2012648R |
| Publisher IP: | 10.56.124.70 |
| Subscriber IP: | 10.56.124.71 |
| Number Range: | 2888793XX |
SBC Detail
| CSD001 | CSD002 | |
|---|---|---|
| Port FNN: | N2031212R | N2031208R |
| CE01 IP: | 10.0.68.114/30 | 10.0.68.118/30 |
| CE02 IP: | 10.0.68.113/30 | 10.0.68.117/30 |
| VLAN: | 1100 | 1100 |
| SBC to B2B-CUCM Signaling IP: | <192.168.1.X> | <192.168.2.X> |
SBC Configuration
VRF
vrf definition <VPN-FNN> description <Customer Name Name> rd <XXXXX:XX> ! address-family ipv4 exit-address-family !
Interface to IPMAN
interface GigabitEthernet1/0/0.<VLAN> description <Customer Name> vrf forwarding <VPN-FNN> encapsulation dot1Q <VLAN> ! *** On CSD-001 *** ip address <CE01-IP> 255.255.255.252 ! *** On CSD-002 *** ip address <CE02-IP> 255.255.255.252 ip access-group signalling_and_media_only in no ip unreachables no cdp enable no shut !
IP Routing
! *** On CSD-001 *** ip route vrf <VPN-FNN> 0.0.0.0 0.0.0.0 <PE01-IP> ! *** On CSD-002 *** ip route vrf <VPN-FNN> 0.0.0.0 0.0.0.0 <PE02-IP>
SBC Interface
interface SBC<FNN> description <Customer Name> vrf forwarding <VPN-FNN> ! *** On CSD-001 *** ip address <192.168.1.X> 255.255.255.255 secondary vrf b2bCore ip address 147.132.191.18 255.255.255.252 ! *** On CSD-002 *** ip address <192.168.2.X> 255.255.255.255 secondary vrf b2bCore ip address 147.132.191.22 255.255.255.252 !
Media Address
! *** On CSD-001 *** sbc csd-001 ! *** On CSD-002 *** sbc csd-002 ! *** On CSD-001 *** media-address ipv4 147.132.191.18 vrf <VPN-FNN> ! *** On CSD-002 *** media-address ipv4 147.132.191.22 vrf <VPN-FNN>
Adjacency
! *** On CSD-001 ***
sbc csd-001
! *** On CSD-002 ***
sbc csd-002
sbe
adjacency sip <VPN-FNN>_ccp
vrf b2bCore
account <VPN-FNN>_b2bCore
! *** On CSD-001 ***
signaling-address ipv4 <192.168.1.X>
! *** On CSD-002 ***
signaling-address ipv4 <192.168.2.X>
signaling-port 5060
remote-address ipv4 10.126.180.68 255.255.255.255
signaling-peer 10.126.180.68
preferred-transport tcp
ping-enable
ping-interval 50
ping-fail-count 2
ping-lifetime 5
statistics method summary
nat force-off
attach
!
adjacency sip <VPN-FNN>_ccs
vrf b2bCore
account <VPN-FNN>_b2bCore
! *** On CSD-001 ***
signaling-address ipv4 <192.168.1.X>
! *** On CSD-002 ***
signaling-address ipv4 <192.168.2.X>
signaling-port 5060
remote-address ipv4 10.126.180.69 255.255.255.255
signaling-peer 10.126.180.69
preferred-transport tcp
ping-enable
ping-interval 50
ping-fail-count 2
ping-lifetime 5
statistics method summary
nat force-off
attach
!
adjacency sip <VPN-FNN>_pub
vrf <VPN-FNN>
account <VPN-FNN>_cust
! *** On CSD-001 ***
signaling-address ipv4 147.132.191.18
! *** On CSD-002 ***
signaling-address ipv4 147.132.191.22
signaling-port 5060
remote-address ipv4 <publisher-ip> 255.255.255.255
signaling-peer <publisher-ip>
preferred-transport tcp
ping-enable
ping-interval 50
ping-fail-count 2
ping-lifetime 5
statistics method summary
nat force-off
attach
!
adjacency sip <VPN-FNN>_sub
vrf <VPN-FNN>
account <VPN-FNN>_cust
! *** On CSD-001 ***
signaling-address ipv4 147.132.191.18
! *** On CSD-002 ***
signaling-address ipv4 147.132.191.22
signaling-port 5060
remote-address ipv4 <subscriber-ip> 255.255.255.255
signaling-peer <subscriber-ip>
preferred-transport tcp
ping-enable
ping-interval 50
ping-fail-count 2
ping-lifetime 5
statistics method summary
nat force-off
attach
Call Policy Routing
! *** On CSD-001 ***
sbc csd-001
! *** On CSD-002 ***
sbc csd-002
sbe
call-policy-set <1-2>
! *** Copy existing policy
no complete
rtg-src-account-table SOURCE-ACCT-TABLE
entry <n>
action next-table <VPN-FNN>_cust
match-account <VPN-FNN>_b2bCore
entry <n+1>
action next-table <VPN-FNN>_b2bCore
match-account <VPN-FNN>_cust
rtg-least-cost-table <VPN-FNN>_b2bCore
entry 1
action complete
dst-adjacency <VPN-FNN>_ccs
cost 10
entry 2
action complete
dst-adjacency <VPN-FNN>_ccp
cost 20
rtg-least-cost-table <VPN-FNN>_cust
entry 1
action complete
dst-adjacency <VPN-FNN>_sub
cost 10
entry 2
action complete
dst-adjacency <VPN-FNN>_pub
cost 20
complete
active-call-policy-set <1-2>
CUCM Configuration
- Create dedicated Partition for customer
- Add customer parition to “Incoming_b2b” Calling Search Space
- Create dedicate Location for each customer assign to SIP trunk
- SIP trunk to CSD-001 and CSD-002 for SIP adjacency to the SBC, assign it the Customer dedicated location
- Create a dedicate Route Group for each customer, add the two customer adjacency SIP trunks to the route group and make CSD-002 the primary
- Create a dedicate Route List for each customer, add the customer Route Group to the Route List
- Create Route Pattern to Customer Numbering Range, put that into the customer partition
Troubleshooting
- Show adjacency matching rule
cjtp-csd-002#show sbc csd-002 sbe call-policy-set active
SBC Service "csd-002"
Policy set 1
Active policy set : Yes
First Number Analysis table :
First call routing table : SOURCE-ACCT-TABLE
First reg routing table :
Table Name : N2031208R_b2bCore
Class : Routing
Table type : rtg-least-cost
Total Call-policy Failures : 0 (0 *)
Entry Match Value Destination Adjacency Action
----- ----------- --------------------- ------
1 No match value N2031208R_ccs Routing complete
2 No match value N2031208R_ccp Routing complete
Table Name : N2031208R_cust
Class : Routing
Table type : rtg-least-cost
Total Call-policy Failures : 0 (0 *)
Entry Match Value Destination Adjacency Action
----- ----------- --------------------- ------
1 No match value N2031208R_sub Routing complete
2 No match value N2031208R_pub Routing complete
Table Name : N2067088R_b2bCore
Class : Routing
Table type : rtg-least-cost
Total Call-policy Failures : 0 (0 *)
Entry Match Value Destination Adjacency Action
----- ----------- --------------------- ------
1 No match value N2067088R_ccs Routing complete
2 No match value N2067088R_ccp Routing complete
Table Name : N2067088R_cust
Class : Routing
Table type : rtg-least-cost
Total Call-policy Failures : 0 (0 *)
Entry Match Value Destination Adjacency Action
----- ----------- --------------------- ------
1 No match value N2067088R_pub Routing complete
Table Name : N2728701R_b2bCore
Class : Routing
Table type : rtg-least-cost
Total Call-policy Failures : 0 (0 *)
Entry Match Value Destination Adjacency Action
----- ----------- --------------------- ------
1 No match value N2728701R_ccs Routing complete
2 No match value N2728701R_ccp Routing complete
Table Name : N2728701R_cust
Class : Routing
Table type : rtg-least-cost
Total Call-policy Failures : 0 (0 *)
Entry Match Value Destination Adjacency Action
----- ----------- --------------------- ------
1 No match value N2728701R_pub Routing complete
Table Name : SOURCE-ACCT-TABLE
Class : Routing
Table type : rtg-src-acc
Total Call-policy Failures : 0 (0 *)
Entry Match Value Destination Adjacency Action
----- ----------- --------------------- ------
1 N2728701R_b2bCore Next N2728701R_cust
2 N2728701R_cust Next N2728701R_b2bCo
3 N2067088R_b2bCore Next N2067088R_cust
4 N2067088R_cust Next N2067088R_b2bCo
5 telstraEDN_b2bCore Next telstraEDN_cust
6 telstraEDN_cust Next telstraEDN_b2bC
7 N2031208R_b2bCore Next N2031208R_cust
8 N2031208R_cust Next N2031208R_b2bCo
Table Name : telstraEDN_b2bCore
Class : Routing
Table type : rtg-least-cost
Total Call-policy Failures : 0 (0 *)
Entry Match Value Destination Adjacency Action
----- ----------- --------------------- ------
1 No match value telstraEDN_ccs Routing complete
2 No match value telstraEDN_ccp Routing complete
Table Name : telstraEDN_cust
Class : Routing
Table type : rtg-least-cost
Total Call-policy Failures : 0 (0 *)
Entry Match Value Destination Adjacency Action
----- ----------- --------------------- ------
1 No match value telstraEDN_sub Routing complete
2 No match value telstraEDN_pub Routing complete
* Numbers in brackets refer to a call being rejected by a routing or number
analysis table because there were no matching entries in the table. This is
also included in the total figure.
cjtp-csd-002#
- Check adjacency status
cjtp-csd-001#sh sbc csd-001 sbe adjacencies
SBC Service "csd-001"
Name Type State Description
-----------------------------------------------------------
N2012648R_ccp SIP Attached
N2012648R_ccs SIP Attached
N2012648R_pub SIP Attached
N2012648R_sub SIP Attached
N2012734R_ccp SIP Attached
N2012734R_ccs SIP Attached
N2012734R_pub SIP Attached
N2015708R_ccp SIP Attached
N2015708R_ccs SIP Attached
N2015708R_pub SIP Attached
N2015708R_sub SIP Attached
N2019334R_ccp SIP Attached
N2019334R_ccs SIP Attached
N2019334R_pub SIP Attached
N2019334R_sub SIP Attached
N2019633R_ccp SIP Detached
N2019633R_ccs SIP Detached
N2019633R_pub SIP Detached
N2041337R_ccp SIP Attached
N2041337R_ccs SIP Attached
N2041337R_pub SIP Attached
N2041337R_sub SIP Attached
N2724990R_ccp SIP Attached
N2724990R_ccs SIP Attached
N2724990R_pub SIP Attached
N3012699R_ccp SIP Attached
N3012699R_ccs SIP Attached
N3012699R_pub SIP Attached
N3710999R_ccp SIP Attached
N3710999R_ccs SIP Attached
N3710999R_pub SIP Attached
N3710999R_sub SIP Attached
telstraEDN_ccp SIP Attached
telstraEDN_ccs SIP Attached
telstraEDN_pub SIP Attached
telstraEDN_sub SIP Attached
cjtp-csd-001#
- Check adjacency status detail
cjtp-csd-001#sh sbc csd-001 sbe adjacencies N2724990R_pub detail
SBC Service "csd-001"
Adjacency N2724990R_pub (SIP)
Status: Attached
Signaling address: 147.132.191.18:5060, VRF N2724990R
Signaling-peer: 10.145.64.254:5060 (Default)
Force next hop: No
Account: N2724990R_cust
Group: None
In header profile: Default
Out header profile: Default
In method profile: Default
Out method profile: Default
In body profile: None
Out body profile: None
In UA option prof: Default
Out UA option prof: Default
In proxy opt prof: Default
Out proxy opt prof: Default
Priority set name: None
Local-id: None
Rewrite REGISTER: Off
Register contact username: Rewrite
Target address: None
NAT Status: Force off
Reg-min-expiry: 3000 seconds
Fast-register: Enabled
Fast-register-int: 30 seconds
Register aggregate: Disabled
Registration Required: Disabled
Register Out Interval: 0 seconds
Parse username params: Disabled
Supported timer insert:Disabled
Suppress Expires: Disabled
p-asserted-id header-value: not defined
p-assert-id assert: Disabled
Authenticated mode: None
Authenticated realm: None
Auth. nonce life time: 300 seconds
IMS visited NetID: None
Inherit profile: Default
Force next hop: No
Home network Id: None
UnEncrypt key data: None
SIPI passthrough: No
Passthrough headers:
Media passthrough: No
Preferred transport: TCP
Incoming 100rel strip: No
Incoming 100rel supp: No
Out 100rel supp add: No
Out 100rel req add: No
Parse TGID parms: No
IP-FQDN inbound:
IP-FQDN outbound:
FQDN-IP inbound:
FQDN-IP outbound:
Outbound Flood Rate: None
Hunting Triggers: 408 500 503
Add transport=tls param: Disabled
Redirect mode: Pass-through
Security: Untrusted-Unencrypted
TLS mutual authentication: No
Ping: Enabled
Ping Interval: 32 seconds
Ping Life Time: 5 seconds
Ping Peer Fail Count: 2
Ping Trap sending: Enabled
Ping Peer Status: Online
Rewrite Request-uri: Disabled
Registration Monitor: Disabled
DTMF SIP NOTIFY Relay: Enabled
DTMF SIP NOTIFY Interval: 2000
DTMF SIP default duration: 200
DTMF Preferred Method: SIP NOTIFY
Realm : None
Statistics setting: Summary
cjtp-csd-001#
- Show active call
cjtp-csd-001#show sbc csd-001 sbe calls SBC Service "csd-001" Call State Src Adjacency Dest Adjacency --------------------------------------------------------------- 2271 Active telstraEDN_sub telstraEDN_ccs 2272 Active N2012734R_ccs N2012734R_pub cjtp-csd-001#
- Clear problem call
clear sbc <sbc-name> sbe call <Call-ID>
- Check which addresses are being blacklist
cjtp-csd-001#sh sbc csd-001 sbe blacklist current-blacklisting SBC Service "csd-001" SBE dynamic blacklist current members No configured blacklist information found. cjtp-csd-001#
- Show black list limit
cjtp-csd-001#sh sbc csd-001 sbe blacklist configured-limits
SBC Service "csd-001"
No configured blacklist information found.
Blacklist Defaults
====================
Reason Trigger Trigger Blacklisting
Size Period Period
Authentication (4) (100 ms) (10 mins)
Bad-Address (4) (100 ms) (10 mins)
Routing (4) (100 ms) (10 mins)
Registration (4) (100 ms) (10 mins)
Policy (4) (100 ms) (10 mins)
Corruption (4) (100 ms) (10 mins)
Spam (30) (100 ms) (10 mins)
--------------------------------------------------------------
cjtp-csd-001#
* Clear blacklist
clear sbc <sbc-name> sbe blacklist ipv4 <ip>
- Other Debug Commands
debug sbc csd-001 filter adjacency telstraEDN_ccp sip debug sbc csd-001 filter adjacency telstraEDN_ccp call debug sbc csd-001 filter adjacency telstraEDN_ccp media debug sbc csd-001 filter adjacency telstraEDN_ccs sip debug sbc csd-001 filter adjacency telstraEDN_ccs call debug sbc csd-001 filter adjacency telstraEDN_ccs media
Cisco Troubleshooting
B2B - Basic troubleshooting for TelePresence B2B Calls

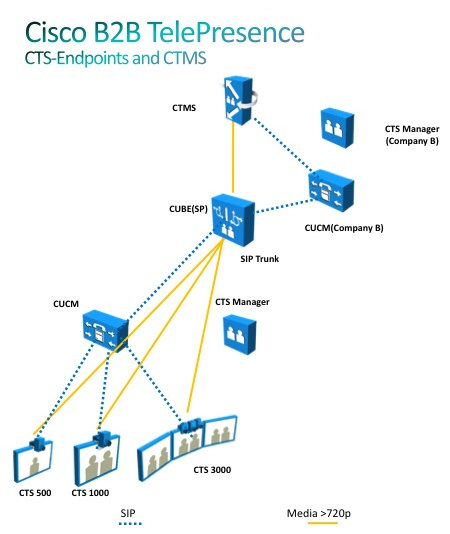

TelePresence endpoints are single and three-screen endpoints that are SIP standardsbased. Most of the B2B calls are routed through the Cisco SBC ASR platforms.
When there are problems placing B2B calls, there are a number of steps that you can take to isolate the cause of the problem.
To troubleshoot a B2B call, do the following procedure:
Troubleshooting within your network
- All rooms are failing to place B2B calls or only 1?
- Verify CTS version is compatible with remote equipment
- Is this room enabled to place B2B calls?
- Do you have security enabled in the CTS/Tandberg endpoint?
- Do you have a valid route pattern and Calling Search Space access from your room to the remote B2B number?
- Is routing properly setup between your Company and the remote SBC for Company B or TelePresence Exchange?
- Is there a Firewall, CUBE, ASA or any other device in the middle which may be preventing communication between your Company and the remote SBC?
- Have you collected CTS, CUCM and SBC logs?
If you need to troubleshoot video and/or audio quality issues for any call for which the call passes through the SBC, it is easy to get some good information/statistics vlia CLI. Note that there is no easy way to programmatically identify dbe media-flows correlating to the sbe call leg based on calling/called numbers since the sbe/dbe do not use the same keys/contexts. Still, you can usually identify the media-flow of interest if you know the media-address on the Customer’s side. Some basic commands are below.
For dialout calls placed on enterprise endpoints, check the status of the call on the session border controller (SBC).
If you need to troubleshoot video and/or audio quality issues for any call for which the call passes through the SBC, it is easy to get some good information/statistics vlia CLI. Note that there is no easy way to programmatically identify dbe media-flows correlating to the sbe call leg based on calling/called numbers since the sbe/dbe do not use the same keys/contexts. Still, you can usually identify the media-flow of interest if you know the media-address on the Customer’s side. Some basic commands are below.
Commands and debugs (ASR platform)
The following commands can give you valuable information to verify call information.
show sbc <your sbc name> sbe adjacencies
show sbc <your sbc name> dbe media-flow-stats summary
show sbc <your sbc name> dbe media-flow-stats detail
show sbc <your sbc name> sbe calls
show platform hardware qfp active feature sbc pfilter global
show ip socket detail
show sbc <your sbc name> sbe sip statistics
show sbc <your sbc name> dbe forwarder-stat
To collect logs in SBC ASR:
- sbc dump-diagnostics harddisk: (issue once to clear the log)
debug sbc <sbc-name> log-level console 0 debug sbc <sbc-name> log-level buffer 0
- Place the call
sbc dump-diagnostics harddisk: (dump the log for this new call) Collect ipstrc and pdtrc file from harddisk.
- After test is complete, you can optionally reset the debug levels:
debug sbc <sbc_name> log-level console 63 debug sbc <sbc_name> log-level buffer 63
Cisco GSR log collection
RP/0/9/CPU0:ciscotxbu-mysbc-1#show services red Service type Name Pref. Active Pref. Standby -------------------------------------------------------------------------------- SBC mycompanysbc 0/7/CPU0 Active 0/6/CPU0 Standby RP/0/9/CPU0:ciscotxbu-mysbc-1#run attach 0/7/CPU0 attach: Starting session 0 to nodeid 0/7/CPU0 attach: Type "exit" to quit. ksh-LC>en ksh-LC>cd /tmp ksh-LC>ls pdtrc* pdtrc.201007191624.log pdtrc.201007191936.log ksh-LC>tail -f pdtrc.201007191936.log
Example 1: Audio only call ( IVR)
1) sjc01-ops-asr-1#show sbc ops-sbc dbe media-flow-stats detail | inc Stream|Side|Address|RTCP|Port|SDP|Packets|Reserved
Stream ID: 49153
Side A:
Reserved Bandwidth: 10920 (bytes/second)
Local Address: 10.22.134.131
Local Port: 16408
Remote Address: 10.35.204.91 <-- This is typically the peer’s IP (usually extracted from SDP)
// Note that this need not match the signaling remote-address configured in the adjacency (remember that this is a dbe command, not an sbe command)
Remote Port: 30836
Port Range Tag: <None>
Packets Received: 777 Packets received on side A should match packets sent side B, if not, DBE may be dropping packets
Packets Sent: 328
Packets Discarded: 0 Packets discarded by DBE, typically if input packet rate exceeds Reserved Bandwidth
GM Discarded Packets: 0
RTCP Packets Sent: 0
RTCP Packets Received: 0
RTCP Packets Lost: 0
Unexpected SrcAddr Packets: No
SDP string: m=audio 0 RTP/SAVP 0 101
Side B:
Reserved Bandwidth: 10920 (bytes/second)
Local Address: 10.22.134.131
Local Port: 16410
Remote Address: 10.35.195.51
Remote Port: 17592
Port Range Tag: <None>
Packets Received: 328
Packets Sent: 777 <-- Note that this value matches packets received on side A (see above)
Packets Discarded: 0
GM Discarded Packets: 0
RTCP Packets Sent: 0
RTCP Packets Received: 0
RTCP Packets Lost: 0
Unexpected SrcAddr Packets: No
SDP string: m=audio 0 RTP/SAVP 0 101 <-- This is a audio stream, and the RTP payload_type of the associated RTP packets is 0
2) Command to see recent/generic call stats/failure-codes:
sjc01-ops-asr-1#sh sbc ops-sbc sbe call-stats all previous5mins
statistics for the previous 5 mins for source adjacency TXBUALPHA-CUCM Call count totals: Total call attempts = 1 Total active calls = 0 Total active IPv6 calls = 0 Total activating calls = 0 Total de-activating calls = 0 Total active emergency calls = 0 Total active e2 emergency calls = 0 Total IMS rx active calls = 0 Total IMS rx call renegotiation attempts = 0 Total SRTP-RTP interworked calls = 0 Total active calls not using SRTP = 0 Total active transcoded calls = 0 Total active transrated calls = 0 General call failure counters: Total call setup failures = 0 Total active call failures = 0 Total failed call attempts = 0 Total failed calls due to update failure = 0 Total failed calls due to resource failure = 0 Total failed calls due to congestion = 0 Total failed calls due to media failure = 0 Total failed calls due to signaling failure = 0 Total failed calls due to IMS rx setup failure = 0 Total failed calls due to IMS rx renegotiation failure = 0 Total failed calls due to RTP disallowed on call leg = 0 Total failed calls due to SRTP disallowed on call leg = 0 Policy control failures: Call setups failed due to NA = 0 Call setups failed due to RTG = 0 Call setups failed due to CAC = 0 CAC fails due to number of calls limit = 0 CAC fails due to call rate limit = 0 CAC fails due to bandwidth limit = 0 CAC fails due to number of media channels limit = 0 CAC fails due to number of media update limit = 0 CAC message drops due to mid call message rate limit = 0 CAC message drops due to out of call message rate limit = 0
3) Command to see if the QFP (QuantamFlow Processors).
→ See if the numbers are incrementing to determine if counter is interesting.
sjc01-ops-asr-1#show platform hardware qfp active statistics drop
------------------------------------------------------------------------- Global Drop Stats Packets Octets ------------------------------------------------------------------------- IpTtlExceeded 190 14060
Packet drops can happen for a number of different reasons (layer 1 – 7, osi). Item 1 & item 2 allow you to track drops at the sbc software level (Layer 5+). To track lower layer problems (for example, drops caused by rtp packets that have udp checksum errors), use command 3 from below (only an example to give you an idea of the commands used, you can use different options to suit your needs).
Example 2: TelePresence Video call
sjc01-ops-asr-1#sh sbc ops-sbc sbe calls
SBC Service "ops-sbc" Call State Src Adjacency Dest Adjacency ----------------------------------------------------------------------- 8 Active TXBUALPHA-CUCM ACE 9 Active TXBUALPHA-CUCM ACE
From the show sbc <your sbc> sbe calls, you can verify calling number using the following command:
sjc01-ops-asr-1#sh sbc ops-sbc sbe call 8 branches
SBC Service "ops-sbc"
Call: 8
State: Active
Type: Audio
Transrating: No
Caller Port Range Tag: (None)
Callee Port Range Tag: (None)
Branch Calling Number Called Number Billing ID DTMF Capabilities
1 14082323488 4DA8C848202020203835313500000000000000000000000F None
2 14082323769**8 4DA8C8482020202038353135000000000000000000000010 Media(RFC2833)
sjc01-ops-asr-1#sh sbc ops-sbc sbe call 9 branches
SBC Service "ops-sbc"
Call: 9
State: Active
Type: Audio
Transrating: No
Caller Port Range Tag: (None)
Callee Port Range Tag: (None)
Branch Calling Number Called Number Billing ID DTMF Capabilities
1 14082323487 4DA8C8602020202038353135000000000000000000000011 None
2 14082323769**8 4DA8C8602020202038353135000000000000000000000012 Media(RFC2833)
Verify Media flowing and remote IP addresses are correct.
When placing B2B and there is an ASA, CUBE or any device which is performing NAT, this command becomes really useful as provide information which can help you to verify if IP addresses negotiated are correct.
sjc01-ops-asr-1# show sbc ops-sbc dbe media-flow-stats summary
SBC Service "ops-sbc"
Context ID 8 Stream ID 49153
Side A: Name Media Flowing: Yes
Local Address/Port: 10.22.134.131/16416
Remote Address/Port: 10.35.204.91/22270
Status: InService
Side B: Name Media Flowing: Yes
Local Address/Port: 10.22.134.131/16418
Remote Address/Port: 10.22.133.231/16384
Status: InService
Context ID 8 Stream ID 49154
Side A: Name Media Flowing: Yes
Local Address/Port: 10.22.134.131/16420
Remote Address/Port: 10.35.204.91/20180
Status: InService
Side B: Name Media Flowing: Yes
Local Address/Port: 10.22.134.131/16422
Remote Address/Port: 10.22.133.231/16386
Status: InService
Context ID 9 Stream ID 49153
Side A: Name Media Flowing: Yes
Local Address/Port: 10.22.134.131/16424
Remote Address/Port: 10.22.73.71/23848
Status: InService
Side B: Name Media Flowing: Yes
Local Address/Port: 10.22.134.131/16426
Remote Address/Port: 10.22.133.231/16388
Status: InService
Context ID 9 Stream ID 49154
Side A: Name Media Flowing: Yes
Local Address/Port: 10.22.134.131/16428
Remote Address/Port: 10.22.73.71/24800
Status: InService
Side B: Name Media Flowing: Yes
Local Address/Port: 10.22.134.131/16430
Remote Address/Port: 10.22.133.231/16390
Status: InService
sjc01-ops-asr-1#show sbc ops-sbc dbe media-flow-stats detail | inc Stream|Side|Address|RTCP|Port|SDP|Packets|Reserved
Stream ID: 49153
Side A:
Reserved Bandwidth: 61320 (bytes/second)
Local Address: 10.22.134.131
Local Port: 16416
Remote Address: 10.35.204.91
Remote Port: 22270
Port Range Tag: <None>
Packets Received: 34010
Packets Sent: 21679
Packets Discarded: 0
GM Discarded Packets: 0
RTCP Packets Sent: 0
RTCP Packets Received: 0
RTCP Packets Lost: 0
Unexpected SrcAddr Packets: No
SDP string: m=audio 0 RTP/SAVP 96 101 <-- This is a audio stream, and the RTP payload_type of the associated RTP packets is 96
Side B:
Reserved Bandwidth: 61320 (bytes/second)
Local Address: 10.22.134.131
Local Port: 16418
Remote Address: 10.22.133.231
Remote Port: 16384
Port Range Tag: <None>
Packets Received: 21679
Packets Sent: 34010
Packets Discarded: 0
GM Discarded Packets: 0
RTCP Packets Sent: 0
RTCP Packets Received: 0
RTCP Packets Lost: 0
Unexpected SrcAddr Packets: No
SDP string: m=audio 0 RTP/SAVP 96 101 <-- This is a audio stream, and the RTP payload_type of the associated RTP packets is 96
Stream ID: 49154
Side A:
Reserved Bandwidth: 2847373 (bytes/second)
Local Address: 10.22.134.131
Local Port: 16420
Remote Address: 10.35.204.91
Remote Port: 20180
Port Range Tag: <None>
Packets Received: 297289
Packets Sent: 337934
Packets Discarded: 0
GM Discarded Packets: 0
RTCP Packets Sent: 0
RTCP Packets Received: 0
RTCP Packets Lost: 0
Unexpected SrcAddr Packets: No
SDP string: m=video 0 RTP/SAVP 112 <-- This is a video stream, and the RTP payload_type of the associated RTP packets is 112
Side B:
Reserved Bandwidth: 2847373 (bytes/second)
Local Address: 10.22.134.131
Local Port: 16422
Remote Address: 10.22.133.231
Remote Port: 16386
Port Range Tag: <None>
Packets Received: 337934
Packets Sent: 297289
Packets Discarded: 0
GM Discarded Packets: 0
RTCP Packets Sent: 0
RTCP Packets Received: 0
RTCP Packets Lost: 0
Unexpected SrcAddr Packets: No
SDP string: m=video 0 RTP/SAVP 112 <-- This is a video stream, and the RTP payload_type of the associated RTP packets is 112
eduardo/telstra/b2b.txt · Last modified: 2024/02/23 08:20 by 127.0.0.1
