Media Resource
General
- CUCM selects an audio or video conference bridge from the MRGL of the conference initiator
- When a media resource is involved, there is no direct RTP communication between the two IP phones
- By default, all media resources are placed in the null MRG
- Usage of hardware resource is preferred over software
- Media resource usage is load balanced.
| CUCM Resource Type | Hardwares |
|---|---|
| Cisco Conference Bridge Hardware | WS-X6608-T1, WS-X6608-E1 |
| Cisco IOS Conference Bridge | NM-HDV |
| Cisco Confernce Bridge (WS-SVC-CMM) | WS-SVC=CMM |
| Cisco IOS Enhanced Conference Brdige | PVDM2, NM-HD, NM-HDV2 |
| Cisco Video Conference Bridge (IPVC-35xx) | IPVC-35xx |
Intelligent Bridge Selection
- New in CUCMv7
- If there is one video participant or no video participants, an audio conference bridge from the MRGL is selected
- If a video conference bridges is need but none is available, an audio conference bridge is allocated.

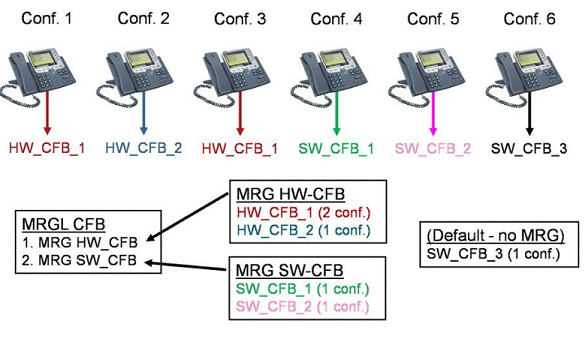

MRG Selection
- Uses all the resource in MRG_HW_CFB first
- Then uses the resources in MRG_SW_CFB
- If MRGL_CFB is exhausted, look into the Null MRG.
Configuration
- Assuming the media resource is already configured.
MRG
- Under Media Resources > Media Resource Group

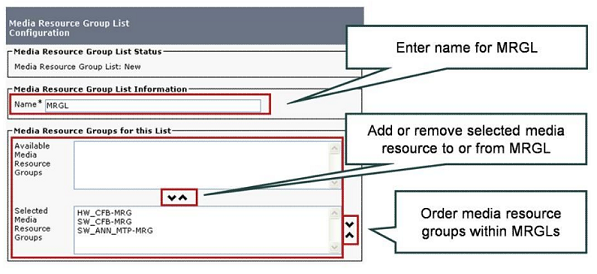

MRGL
- Under Media Resources > Media Resource Group List

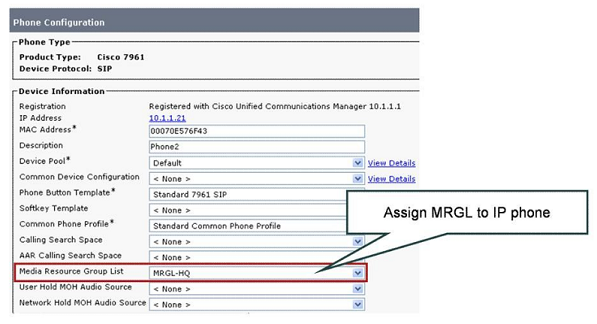

Assign to Device
- Under Device > Phone
