Barge
General
- Barge - barge into a two way calls to make it a three ways by using the internal (built-in) conference capability on the phone
- cBarge - uses shared conference bridge for the barge. Allow more flexibility in terms or codec.
- Privacy - stop someone from barging in
- Original two party call
- Initiator barges into the call and turn it into a three ways call
- If initiator hangs up, original call remains active
- If target hangs up, initiator and other party connect point-to-point
- If other party hangs up, original call and barged call are released
Configuration Barge
Shared Line

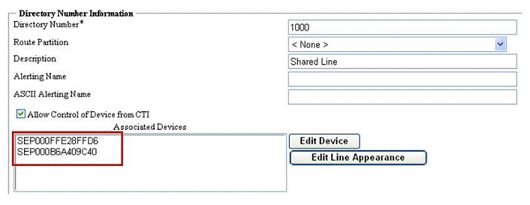

- To use barge, we must have a shared line
- Without barge, the first person to answer the shared line will have exclusive access to this line
Enable Barge

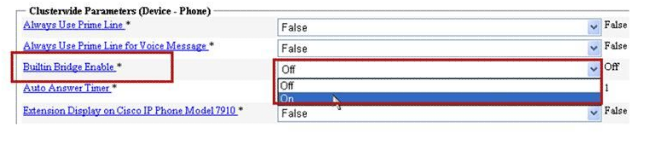

- Enable barge clusterwide CallManager service parameters

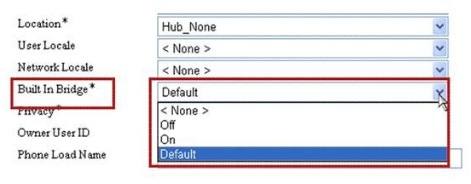

- Enable barge on the device level
Softkey
- Add the barge/cbarge button to the phone softkey template
Configuration Privacy

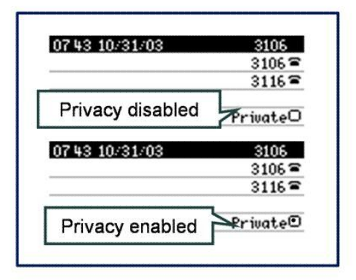

- When privacy button is enabled, the barge button will not appear when the shared line is in a call
Enable Privacy

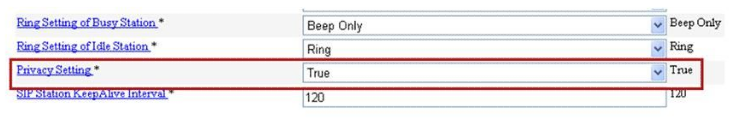

- Enable privacy clusterwide

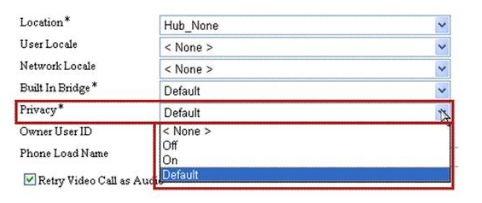

- Enable privacy at device level
Phone Button Template
- Assign Privacy button to the Phone Button Template of the phone
Service Parameters
- Party entrance tone set to true to play a tone when someone barge into the call
